Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

Get top-quality Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1) from our factory. Protect your eyes and work with confidence.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • A Corner Of The Factory
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
WD1
Customized Support
OEM
Function
Tack Mode, Step Delay
Reaction Time
0.00015 Sec
Application
All Welding, Cutting, Grinding
Transport Package
Shipping Carton
Specification
108 x 50.8 x 5mm
Origin
China
HS Code
8543709990
Production Capacity
200000pieces/Year

Product Description


Product Description

This product take our best and latest technonlogy of Tack Mode, Step Delay combine with our independent 6th Genations ships to bring best using experience and welding protection for users .

Step Delay Features introduction and advantage
During the welding, ADF is normally in the dark state 13, 14 or dark state 10, 11 to protect the welder's eyesfrom strong welding arc, when the welding work completed welding arc disappeared, the normal ADF shade will directly change from dark state to bright state in 0.1 to 1 second short time , which make the eyes needs to adapt to the extreme brightness change from dark to bright in very short seconds and make eyes discomfort. The step delay function perfectly solves this pain point, after the end of welding, ADF is not directly changed from dark state to bright state, but first change from dark state to shade 5, and then turns to light state, so that the eye has an adaptation process and feels more comfortable

Tack Mode Features introduction and advantage
Generally, during spot welding, the welding arc will frequently switch between dark state and light state in a short period of time, so that the ADF filter also frequently switches between dark state and light state, making people eyes discomfort. Tack Mode function perfectly solves this pain point by making Shade5 to be the convert shade, when the spot welding arc disappears, ADF is not directly switched to the light state, but to shade 5, which greatly reduces the discomfort of the eyes caused by the big change of brightness and darkness, and also ensures the clarity of the view during welding work



Wd1
Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

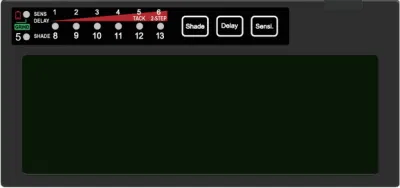

ADF Model

WD1

Optical Class

1/1/1/2

Viewing Area

96 x 33mm /3.78" x 1.30"

Cartridge Size

108 x 50.8 x 5mm / 4.25" x 2.0" x 0.2"

UV/IR Protection

Permanent Shade DIN 13

Light State

Shade DIN 3

Dark State

Variable Shade 5/8-13

Sensors

2

Grinding

Shade DIN 3

Sensitivity Control

DIGITAL(1-6)

Reaction Time (swithing time)

0.00015 sec

Delay Control (Time from dark to light)

0.06~2S+TACK_MODE+2_STEP

Digital Display

YES

Battery Type

2×CR1025 (Replaceable)

Solar Cell

YES

Power On/Off

Fully Automatic

TIG Rating

>2Amp

Standard

EN379 CE / ANSI Z87.1 /  Z94.3





A Corner Of The Factory

Well PPE Co., Ltd. has welding helmet and auto darken filter R & D and manufacturing experience for 20 years, our products are exported to Europe,the United States and also other welding protection market to provide high-quality protection for the local welders and got customers unanimous praise.

We has been focusing on product research and development and committed to providing better security for welders, we have made a major breakthrough in ADF technology this year after years of efforts, and successfully developed ADF autoshade, step delay, shade lock, tack mode etc. functions, we combine these technologies with our self-developed chips, and is the advance manufacturer on the market currently which can apply these advanced technologies to the single same ADF products.

  We can also provide OEM and OEM as per customer requirement .

Welcome customers to enquire and purchase, let us work together to contribute our own light and heat to the welding protection industry.


Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)


Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)



Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)


Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)



Certifications



Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)


Packaging & Shipping



Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

Auto Darken Welding Helmet Lens Filter with CE/ANSI/Z94.3 Certification (WD1)

FAQ
1. Can I place Mix order?
Yes, sure. You can mix color and types as you like. Even for trail order
2. Can I get discount?
Yes. For big order, old customer and frequent customers, we give more reasonable discount. Even for news customer can offer some discount for long time business.
3. How could I pay for the order?
You can pay us by Paypal, western union, T/T or Money Gram.Other terms of payment is also be negotiated.
4. How to place an order?
You can send us your purchase order and requirements through email or chat with us directly on trade manager, skype, wechat or whatsapp .Once order confirmed,we will send you proformal invoice to pay.
5. How long could I get my order?
Stock Products: will send out within 3-7 days.
Customized products: Depends on your design and quantity.
6. How can the products be sent to us?
If small quantity ,will be DHL,EMS,UPS FEDEX or other delivery. We will choose the most safe and cheapest way for customer if they do not have their prefer one or agents. But also can send as clients  requirements. If big quantity,we will suggest customer to send by sea.
7. Can you add our own logo on the products or use our designs?
 Yes. Of course you can add logo on our products. Also ODM/OEM is welcome! In addition, we promise your design would protect by law, we won't tell anyone else about this! It is your own copy right.We can print your logo and information or use label(sticker) to add.
8. Is quality good?
Definitely, quality is the most important factor to maintain a company's reputation, so it's a must!
