Hot Sony Ahd 2.0MP Video Surveillance Small Bullet Pinhole Bullet Mini Security CCTV Camera Lens 3.7mm

Get high-quality video surveillance with the Hot Sony Ahd 2.0MP Small Bullet CCTV Camera. Our factory ensures top-notch security products. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WDM-ZD6420H
Kind
Manual Focus Lens
Certification
CE, FCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
0-9m
Sensor Size
1/3 inch
Remote Control
Without Remote Control
Lens
3.7mm Fixed Lens
Waterproof
IP66
Signal System
PAL/NTSC
Power
DC12V
Color
Black
Dimension
22mm
Output Resolution
1.3MP (1280*960)/2.0MP (1920*1080)
Minimum Illumination
0.05lux/F1.2(LED on)
D/N Mode
IR Cut Auto Switching
Max Transmission Distance
Common 75-3 Cables Can Be up to 500m
Transport Package
Natural Packing
Trademark
WARDMAY
Origin
Shenzhen of China
Production Capacity
20000 Per Month

Product Description

1.3/2.0Megapixel IR Mini Pinehole HD-AHD Camera

Featrues:
* Using the high performance sensor, image is clear and delicate;
* Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial anddistortion;
* Analog HD 1.3MP AHD video output;
* Support the ultra low illumination;
* Support automatic electronic shutter function, adapt to different monitoring environment;
* DC12V
* Waterproof:IP66;black; Ø22*mm


Specification:

Model No. WDM-ZD6420H
Video
Language Chinese / English
Sensor 1/3" NVP2431H+IMX225 1/2.9" FH8536E+IMX323
Signal System PAL/NTSC
Effective Pixel 1.3MP(1280*960) 2.0MP(1920*1080)
D/N Mode External Control (Default) / Auto External Control (Default) / Auto
Minimum Illumination Color:0.1Lux@(F1.2,AGC ON),0Lux with IR
Black & White
:0.01Lux@(F1.2,AGC ON),0Lux with IR
Color:0.001Lux@(F1.2,AGC ON),0Lux with IR
Black & White
:0Lux@(F1.2,AGC ON),0Lux with IR
Frame rate PAL:(1380*920)@25fps
NTSC:(1380*920)@25fps
PAL:(1920*1080)@25fps
NTSC:(1920*1080)@25fps
OSD Menu None / Support Manual Dialing / UTC
DWDR Support / Not support
DNR 2D-DNR / 3D-DNR
WDR Support / Not support
Video Output XIVI/AHD/TVI/CVI(Default AHD)
Lens and IR
Lens 3.7/mm fixed Lens / Iris Lens
Visible Distance 1-10m
Function
Shutter Speed 1/50(1/60) seconds to 1/10,000 seconds
White Balance Auto White Balance/ Manual operation
Operation Temperature -20°C~60°C
Operation Humidity Relative Humidity Below 90%
Power Supply DC12V(±20%) 50mA

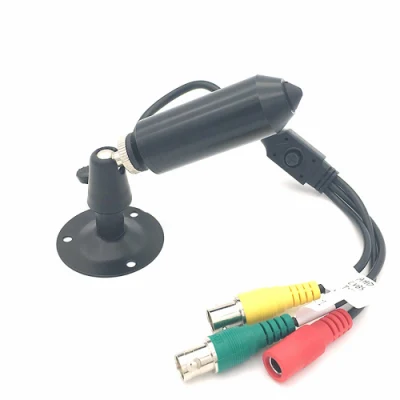

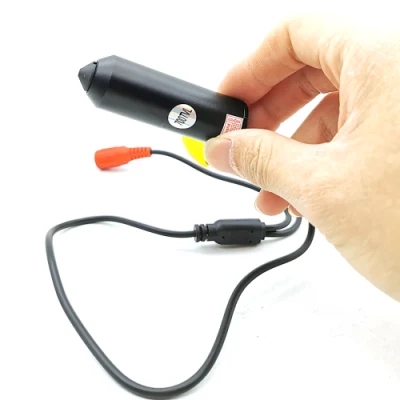

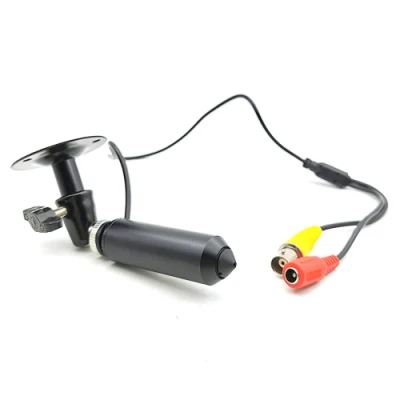

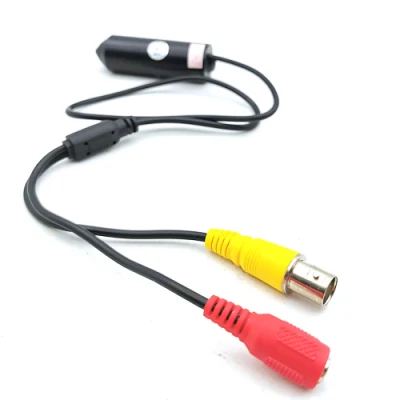

Product Show:
